Home » InSync RM - RFID Mortise - Smart Door Lock
My Store

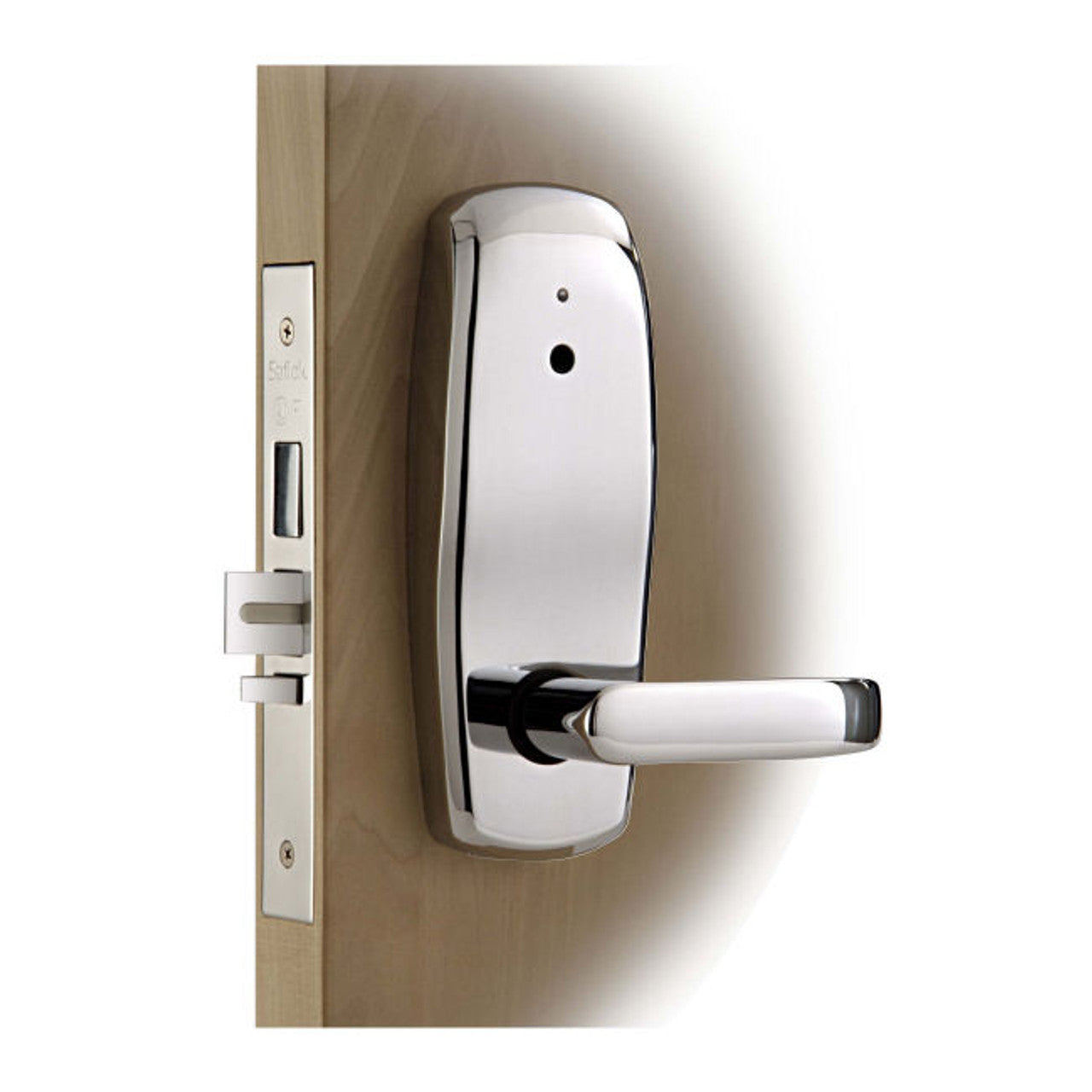

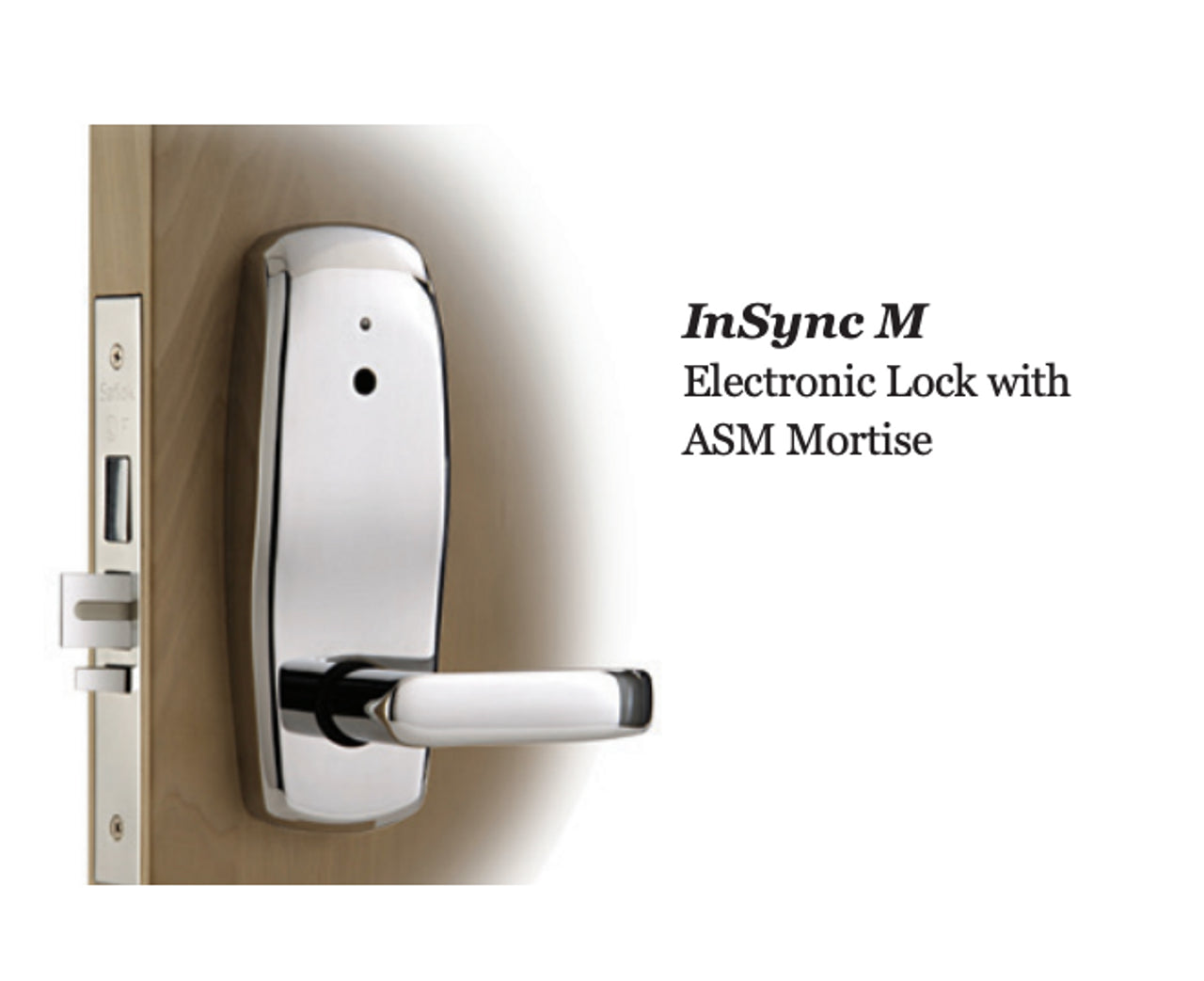

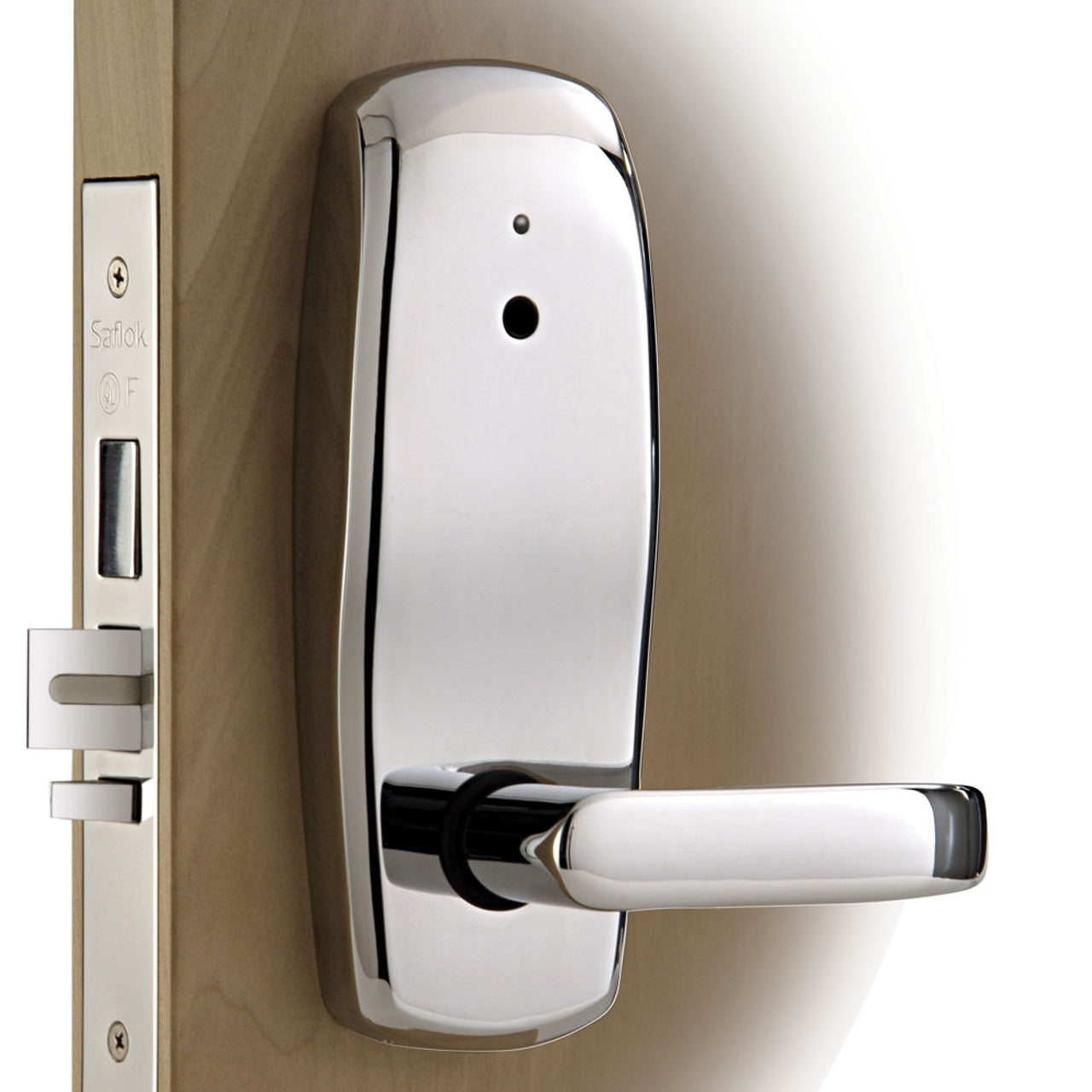

InSync RM - RFID Mortise - Smart Door Lock

In stock
SKU: Phone Order
$610.00

Use this text to encourage communication or promote sharing on social networks.

You can also add links

These items have very limited availability in stock, call us to place your order.

Customize Your InSync RM Lock – Tailored to Fit Your Needs

Due to the customizable nature of this product, we recommend contacting us directly to begin your order. Our team will help you select the right configuration and ensure compatibility with your existing setup.

Call us today at 801-972-4331 to get started.

Options:

Locking Device Options

Select from the following locking devices:

  • 1 - Automatic deadbolt (20 min. fire rated) 1-¼” Face Plate
  • A - Automatic deadbolt (3 hr. fire rated) 1-¼” Face Plate
  • 2 - Utility Mortise no deadbolt (20 min. fire rated) 1-¼” Face Plate
  • B - Utility Mortise no deadbolt (3 hr. fire rated) 1-¼” Face Plate
  • 3 - Automatic deadbolt (20 min. fire rated) 1” Face Plate
  • C - Automatic deadbolt (3 hr. fire rated) 1” Face Plate
  • 4 - Utility Mortise no deadbolt (20 min. fire rated) 1” Face Plate
  • D - Utility Mortise no deadbolt (3 hr. fire rated) 1” Face Plate

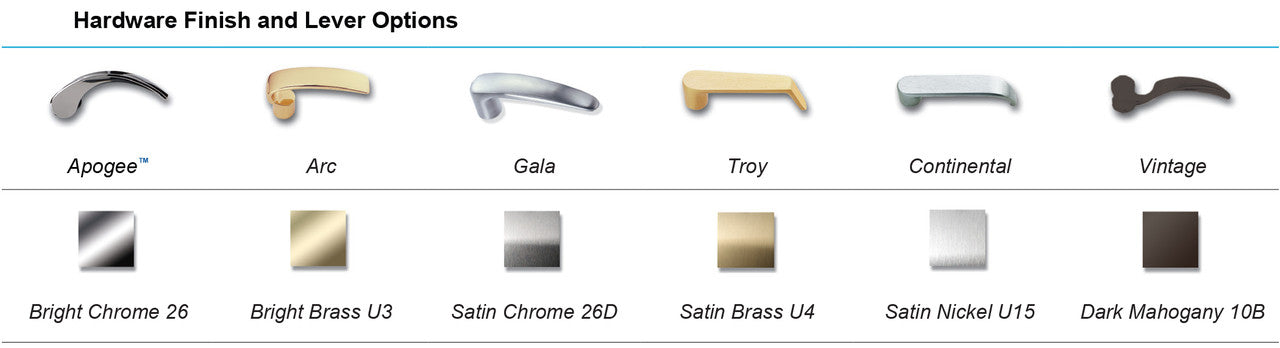

Finish Options

Available finishes to match your design aesthetic:

  • Satin Chrome (26D)

  • Bright Chrome - Mirror Finish (26)

  • Satin Brass (U4)

  • Bright Brass (U3)

  • Satin Nickel - Troy and Gala Only (+ $40) (U15)

  • Dark Mahogany (+ $40) (10B)

Lever Style Options

Select from the following lever designs:

  • A - Arc

  • C - Continental (Standard)

  • G - Gala

  • S - Troy

  • V - Vintage

  • X - Apogee (+$10)

Handing Options

Choose the handing that matches your door:

  • Right

  • Left

  • Right Had Reverse

  • Left Had Reverse

Configuration Options

Choose the configuration that best matches your use:

  • Unit Configuration

  • Suite Configuration

  • Common Area Configuration

Included RFID Keys

This Lock can come with pre-programmed RFID keys



📞 Ready to Order? Let’s Get Started.

Due to the customizable nature of this product, we recommend contacting us directly to begin your order. Our team will help you select the right configuration and ensure compatibility with your existing setup.

Call us today at 801-972-4331 to get started.
We’re here to help every step of the way.



Notes:

All InSync locks are designed for doors ranging from 1 ⅜" to 2" thick. For door sizes outside this range, custom parts will be required.

Features:

  • Amenity that reduces liability, costs, and improves property operations

  • RFID keys (purchased separately) are encrypted with unique coding that cannot be duplicated

  • When the lever is depressed, both the deadbolt and latch are simultaneously retracted

  • Solves the master key problem – if master RFID key is lost or stolen, simply program a new one.  That new master RFID key when inserted in locks “instructs” the locks to then only accept that new master RFID key

  • Solves the turnover issue of having to change locks/re-key.  Simply program a new RFID key for incoming resident

  • One RFID key can open residents units, as well as common areas (such as fitness center, laundry, pool, etc.)

  • Property Manager and maintenance staff can have a single RFID key for access to all tenant and common use doors

  • Specify specific times, using intuitive SAM Software (purchased separately), for when keys are allowed to access

  • RFID keys work until pre-programmed specific expiration date/time is reached, or when a new RFID key is made and cancels out previous RFID keys

  • Centralized control; after initial installation, no additional need to reprogram locks each time a new key is issued, simply reprogram the RFID key using the RF key encoder (available at checkout)

  • Intuitive, easy-to-use, Windows-based software for centralized management of user information, openings, as well as audit trail reporting

  • Custom finishes available, including bright brass, dark mahogany, satin brass, and bright chrome

  • Many lever designs available (other handle designs/styles available upon special request)

Specs:

  • ASM -American Standard Mortise

  • Battery operation:  4 AA’s

Environmental:

Indoor/outdoor approval: -31 ºF to 151 ºF (-35 ºC to 66 ºF). Locking Device Option 0 meets FL Windstorm Specification. Certified compliance to the Florida Building Code per FL13061.1 for installation in HVHZ (High Velocity Hurricane Zone) areas for mortise with deadbolt and auto deadbolt locking devices only.  (Refer to FloridaBuilding.org for actual product approvals and specifications)

Compatibility:

  • Works with SAM-RF® Software and Insync™ Programmers/ Encoders

  • Saflok® Insync™ RFID KEYs are used

Additional Documentation:

Check the DormaKaba website for the most up-to-date information about the Insync RM Series locks.

User Manual
