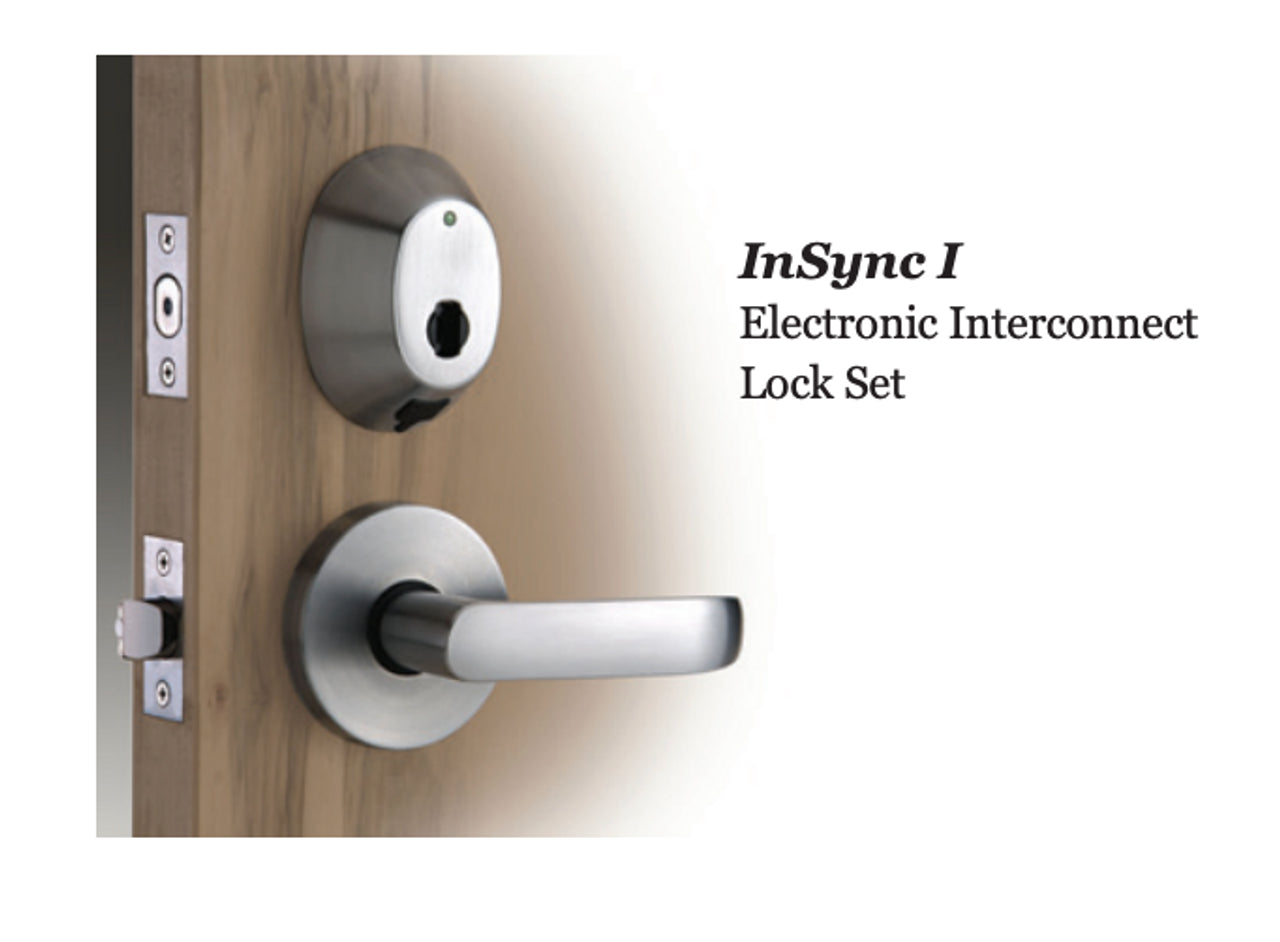

InSync RI - Interconnect RFID Deadbolt Door Lock Handleset System

These items have very limited availability in stock, call us to place your order.

Customize Your InSync RI Lock – Tailored to Fit Your Needs

Due to the customizable nature of this product, we recommend contacting us directly to begin your order. Our team will help you select the right configuration and ensure compatibility with your existing setup.

Call us today at 801-972-4331 to get started.

Options:

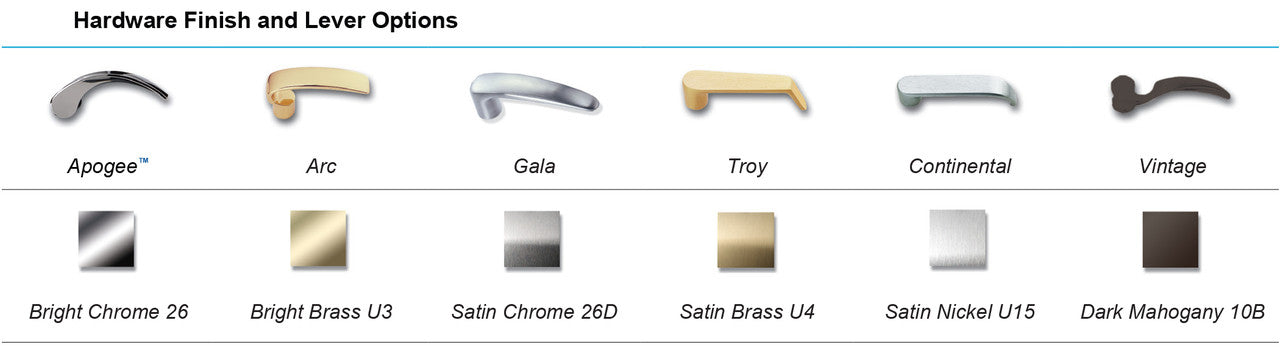

Finish Options

Available finishes to match your design aesthetic:

• Satin Chrome (26D)

• Bright Chrome - Mirror Finish (26)

• Satin Brass (U4)

• Bright Brass (U3)

• Satin Nickel (+ $40) (U15)

• Dark Mahogany (+ $40) (10B)


Lever Style Options

Select from the following lever designs:

• A - Arc

• C - Continental (Standard)


• G - Gala

• S - Troy

• V - Vintage

• X - Apogee (+$10)


Handing Options

Choose the handing that matches your door:

• Left/Left Hand Reverse

• Right/Right Hand Reverse

Configuration Options

Choose the configuration that best matches your use:

• Unit Configuration

• Suite Configuration


Backset Options

Select from the following backset options:

• 2-3/8" Backset (T Lip Strike)

• 2-3/4" Backset (T Lip Strike)


• 2-2-3/8" (4-7/8" Strike)

• 2-3/4" (4-7/8" Strike)

Included RFID Keys

This Lock can come with pre-programmed RFID keys

📞 Ready to Order? Let’s Get Started.

Due to the customizable nature of this product, we recommend contacting us directly to begin your order. Our team will help you select the right configuration and ensure compatibility with your existing setup.

Call us today at 801-972-4331 to get started.
We’re here to help every step of the way.

Features:

• Amenity that reduces liability, costs, and improves property operations
• RFID keys (purchased separately) are encyrpted with unique coding that cannot be duplicated
• Unlike traditional keys, RFID keys cannot be copied
• When the lever is depressed, both the deadbolt and cylindrical latchbolt are simultaneously retracted
• Solves the master key problem – if master RFID key is lost or stolen, simply program a new one.  That new master RFID key when inserted in locks “instructs” the locks to then only accept that new master RFID key
• Solves the turnover issue of having to change locks/re-key.  Simply program a new RFID key for incoming resident
• One RFID key can open residents units, as well as common area including fitness center, laundry, parking garage, etc…
• Property manager and maintenace staff can have one RFID key for all tenant and common use doors
• Specify the times using intuitive SAM Software (purchased separately)  for when maintenance personnel’s keys are allowed to gain access
• RFID keys work until pre-programmed specific times, and each new RFID key cancels out previous RFID keys which may have been lost or misplaced
• Centralized control; no need to reprogram locks with device at the lock, simply reprogram the RFID key using the RF key encoder (available at checkout)
• Intuitive, easy-to-use windows-based software for centralized management of user information, openings, as well as audit trail reporting
• Custom finishes available, including bright brass, dark mahogany, satin brass, and bright chrome
• Gala Lever Design (other handle designs/styles available upon special request)

Specs:

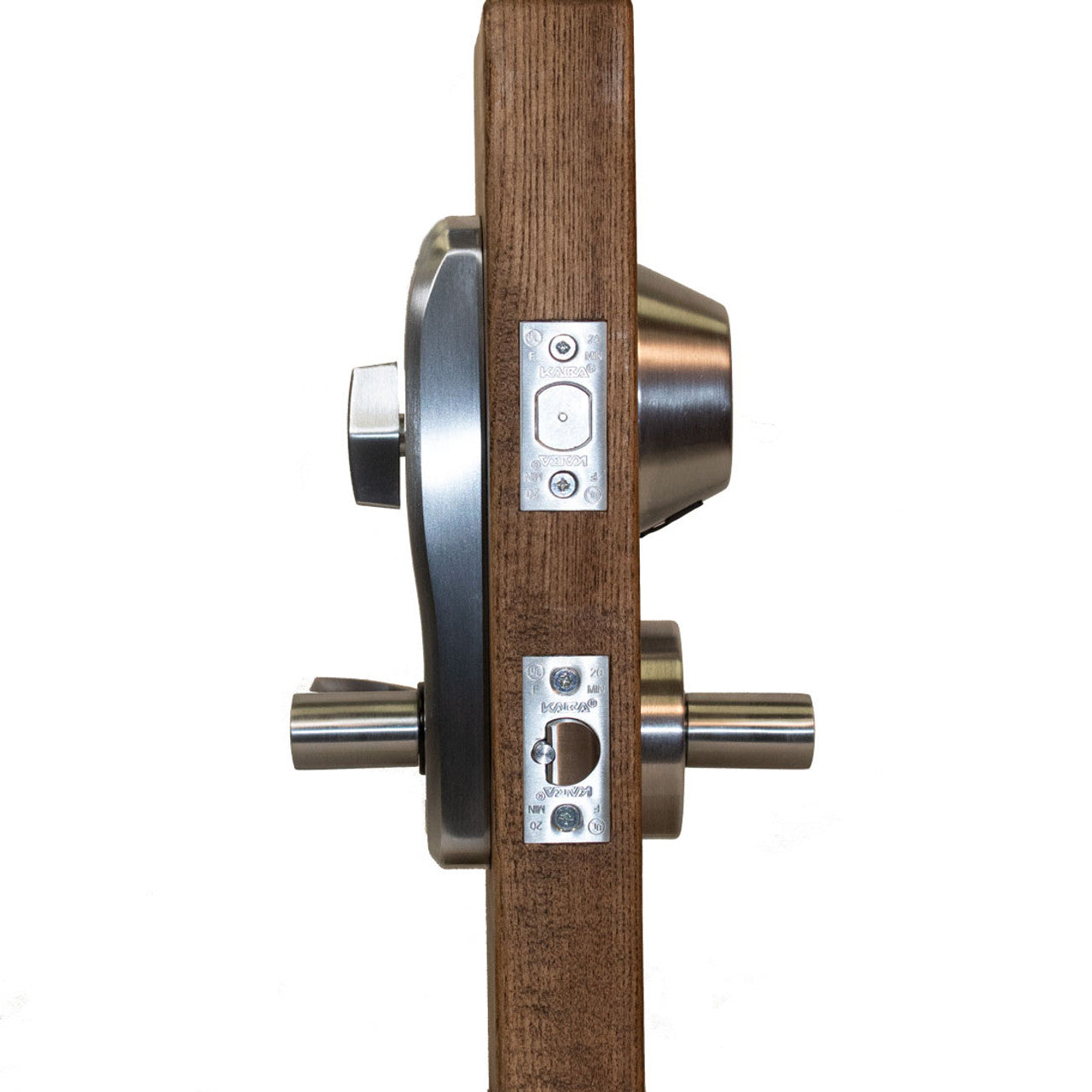

• 1″ deadbolt – lock via manual thumbturn from inside.  Lock by inserting and rotating RFID key when exiting
• Complete interconnected lever set
• 4-1/2″ center to center distance between the 2-1/8″ diameter door holes
• Backset:  Standard 2 3/8″ with 1″ faceplate supplied, 2 3/4″ backsets available upon request, along with 4-7/8″ strikes
• Battery operation:  4 AA’s

Old part numbers are replaced:

Old: 1 - 2-⅜” Backset (T Lip Strike) New: 5 - 2-⅜” Backset (T Lip Strike)

Old: 2 - 2-¾” Backset (T Lip Strike) New: 6 - 2-¾” Backset (T Lip Strike)

Old: 3 - 2-⅜” (4-⅞” Strike) New: 7 - 2-⅜” (4-⅞” Strike)

Old: 4 - 2-¾” (4-⅞” Strike) New: 8 - 2-¾” (4-⅞” Strike)

User Manual

Check the DormaKaba website for the most up-to-date information about the Insync I Series locks.
