InSync CP / RP - Panic Lock - Exit Trim Door Lock

In stock
SKU: RPS-100S-26D
$708.47

Use this text to encourage communication or promote sharing on social networks.

You can also add links

These items have very limited availability in stock, call us to place your order.

Customize Your InSync CP / RP Panic Lock – Tailored to Fit Your Needs

Due to the customizable nature of this product, we recommend contacting us directly to begin your order. Our team will help you select the right configuration and ensure compatibility with your existing setup.

Call us today at 801-972-4331 to get started.

Options:

Exit Device Options

Choose from a range of exit devices to suit your door configuration:

  • 5 - Dorma 9300 Rim (Includes 36" Rim Non Fire rated exit device)
  • 6 - Dorma 9400 Surface Mount Vertical Rod (Includes 36" Surface Mount Vertical Rod Non-fire rated exit device)
  • A - Dorma 9300 Rim (Lock only exit device not included)

  • B - Dorma 9400 Surface Mount Vertical Rod (Lock only exit device not included)

  • E - Sargent 888F Rim (Lock only exit device not included)
  • F - American Eagle 4200R Rim (Lock only exit device not included)
  • G - Von Duprin 98/99 Rim (Lock only exit device not included)
  • H - Von Duprin 98/99 Surface Mount Vertical Rod (Lock only exit device not included)
  • J - Dexter Advantex 10 Series Rim (Lock only exit device not included)
  • K - Dexter Advantex 20 Series Surface Mount Vertical Rod (Lock only exit device not included)
  • L - Pamex EF8000 Rim (Lock only exit device not included)
  • M - Falcon 25 Series Rim (Lock only exit device not included)
  • N - Hager 4500 Rim (Lock only exit device not included)
  • Q - Cal Royal 7700/79000 (Rim Surface Mount Vertical Rod) (Lock only exit device not included)
  • R - Cal Royal 2200 (Rim Surface Mount Vertical Rod) (Lock only exit device not included)
  • S - Cal Royal 9800 (Rim Surface Mount Vertical Rod) (Lock only exit device not included)

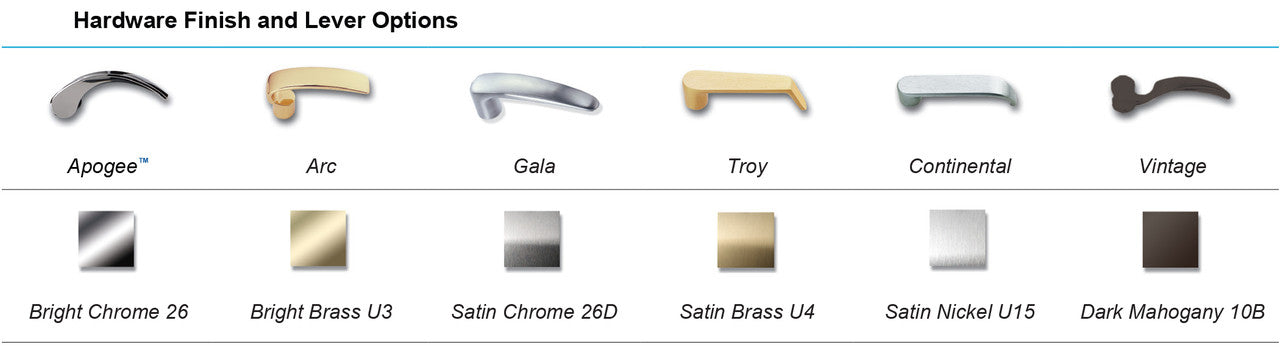

Finish Options

Available finishes to match your design aesthetic:

  • Satin Chrome (26D) (Standard and ships fastest)

  • Bright Chrome - Mirror Finish (26)

  • Satin Brass (U4)

  • Bright Brass (U3)

  • Satin Nickel - Troy and Gala Only (+ $42.50) (U15)

  • Dark Mahogany (+ $42.50) (10B)

  • Black (+42.50) (BK)

Lever Style Options

Select from the following lever designs:

  • Gala (G)

  • Troy (S)

  • Continental (C)

Handing Options

Choose the handing that matches your door:

  • Left Hand Reverse

  • Right Hand Reverse

📞 Ready to Order? Let’s Get Started.

Due to the customizable nature of this product, we recommend contacting us directly to begin your order. Our team will help you select the right configuration and ensure compatibility with your existing setup.

Call us today at 801-972-4331 to get started.
We’re here to help every step of the way.



More Details:

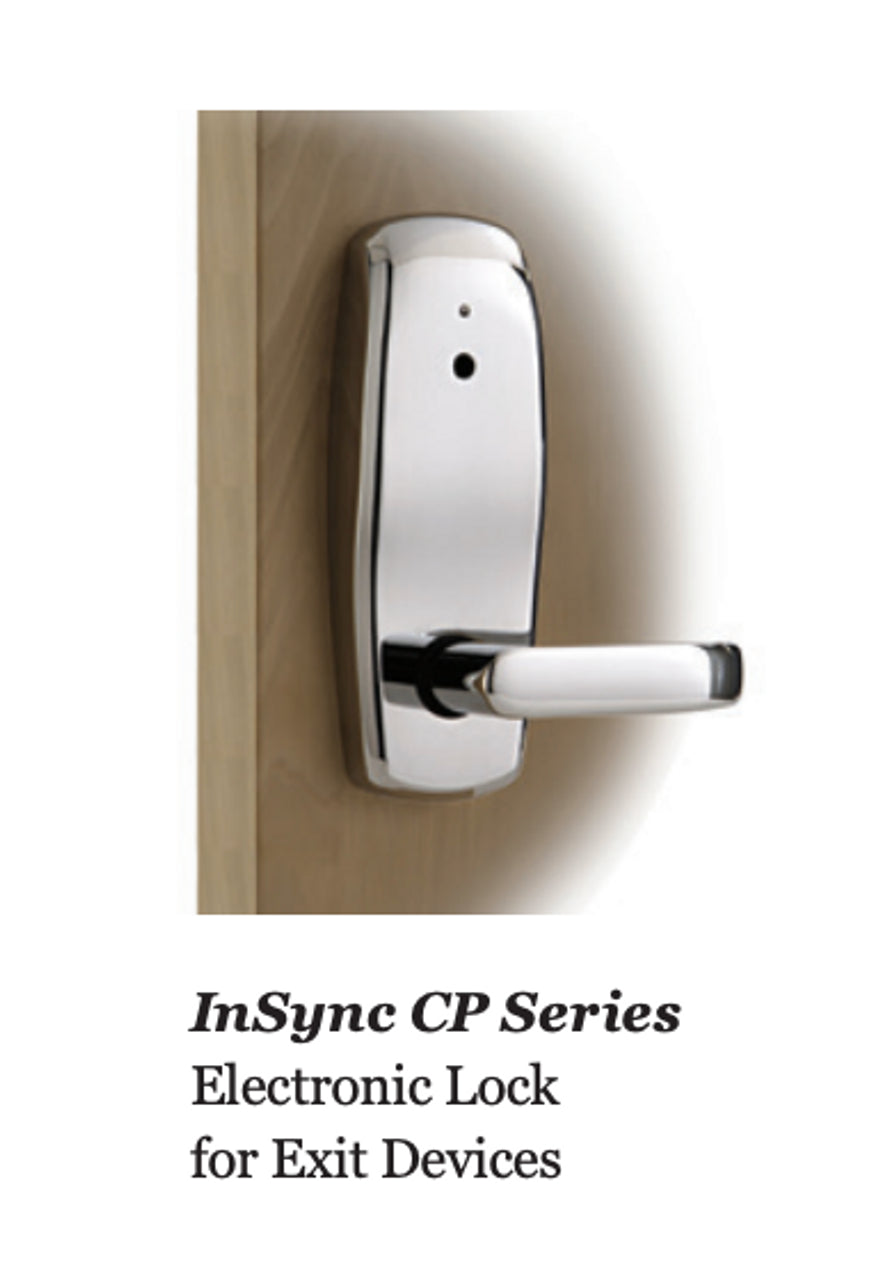

Insync CP Common is a Lock for Exit Devices.

All InSync locks are designed for doors ranging from 1 ⅜” to 2” thick. For door sizes outside this range, custom parts will be required.

Features:

Amenity that reduces liability, costs, and improves property operations

  • RFID keys (purchased separately) are encrypted with unique coding that cannot be duplicated

  • Unlike traditional keys, RFID keys cannot be copied

  • When the lever is depressed, latch or rods are retracted

  • Solves the master key problem – if master RFID key is lost or stolen, simply program a new one.  That new master RFID key when inserted in locks “instructs” the locks to then only accept that new master RFID key

  • Solves the turnover issue of having to change locks/re-key.  Simply program a new RFID key for incoming resident

  • One RFID key can open residents units, as well as common area including fitness center, laundry, parking garage, etc.

  • Property manager and maintenance staff can have one RFID key for all tenant and common use doors

  • Specify the times using intuitive SAM Software (purchased separately) for when maintenance personnel keys are allowed to gain access

  • RFID keys work until pre-programmed specific times, and each new RFID key cancels out previous RFID keys which may have been lost or misplaced

  • Centralized control; no need to reprogram locks with device at the lock, simply reprogram the RFID key using the RF key encoder (available at checkout)

  • Intuitive, easy-to-use windows-based software for centralized management of user information, openings, as well as audit trail reporting

  • Custom finishes available, including bright brass, dark mahogany, satin brass, and bright chrome

  • Many lever styles.

  • Battery operation:  4 AA’s (included)

Environmental:

Indoor/outdoor approval: -31 ºF to 151 ºF (-35 ºC to 66 ºF). Locking Device Option 0 meets FL Windstorm Specification. Certified compliance to the Florida Building Code per FL13061.1 for installation in HVHZ (High Velocity Hurricane Zone) areas for mortise with deadbolt and auto deadbolt locking devices only. (Refer to FloridaBuilding.org for actual product approvals and specifications)

Compatibility:

Works with SAM-RF® Software and Insync™ Programmers/ Encoders

Saflok® Insync™ RFID KEYs are used to open these locks.



Additional Documentation:

Check the DormaKaba website for the most up-to-date information about the Insync CP Series locks.
